Specification of UAV LiDAR Scanning System

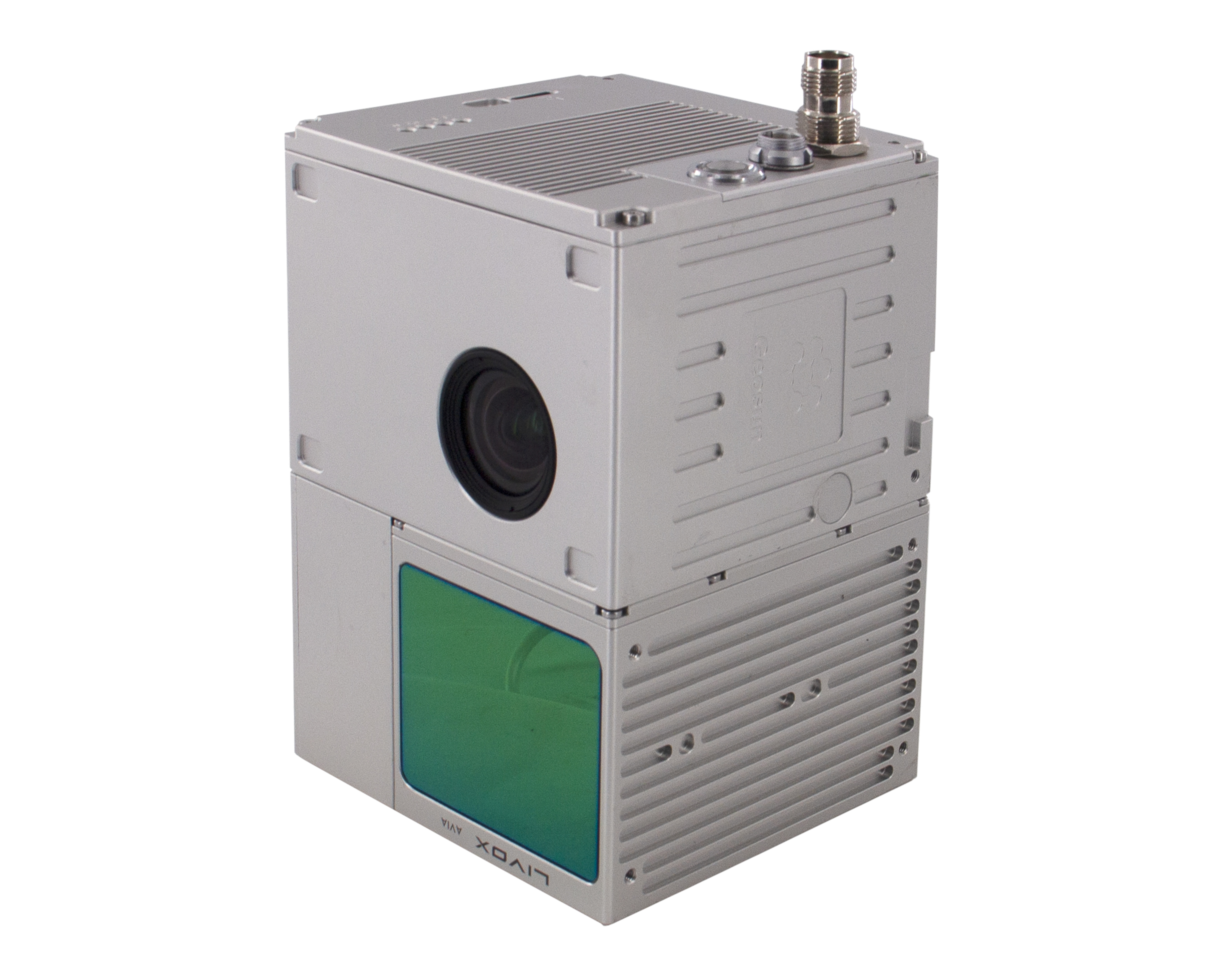

| uav LiDAR scanning system gAirHawk GS-100C+ |
| | Item Name | System Parameter |
|
GS-100C+
Parameter | Weight | 1025g |
| Measuring accuracy | Less than 10 cm (110 m AGL) |
| Power range | 12V~16V |
| Working temperature | -20℃~+55℃ |
| Consumption | Average 20W |
| Support Platform | Multi Rotor, VTOL Fixed Wing |
| Storage | 64 GB storage, maximum support 128GB TF card |
| Lidar Unit | Laser Model | Livox Avia |
| Measuring Range | 190m@10% Reflectivity |
| Laser class | 905nm Class1 (IEC 60825-1:2014) |
| Laser line number | Equivalent to 64-beam |
| Mix. range | 0.3 M |
| Range Precision | 2 cm |
| data | Triple echo, 720,000 Points/Sec |
| FOV | 70° the circular view |
| POS Unit | Update frequency | 200HZ |
| Heading accuracy | 0.040° |
| Pitch accuracy | 0.015° |
| Rolling accuracy | 0.015° |
| Position accuracy | 0.02 - 0.05m |
| GNSS signal type | GPSL1/L2/L5 GLONASSL1/L2 BDS B1/B2/B3 GAL E1/E5a/5b |
| Pre-processing software | POS software | Output information: position, speed, attitude |
| Point cloud software | Output point cloud data format: LAS format, custom TXT format |
| Built-in Camera | FOV | 83 Degree |
| Effective Pixel | 26 Mega Pixel |
| Focal Lenght(mm) | 16 |
