Brife Introduction:

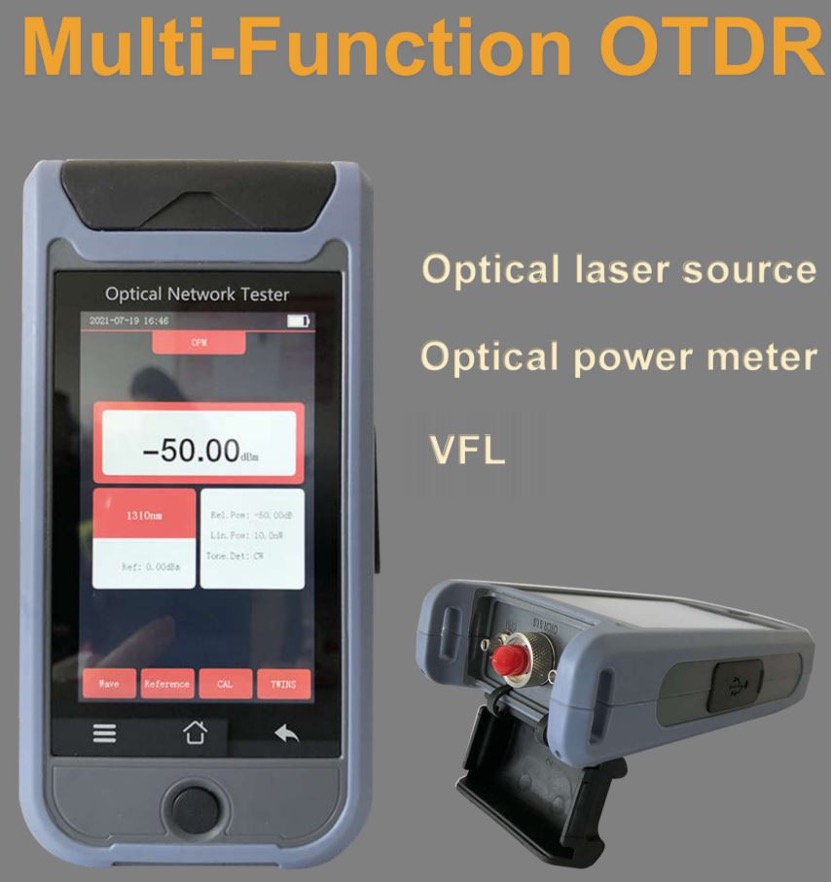

ST3200F series OTDR adopts 4.3 inch capacities touch screen. It integrates 12 functions, such as auto OTDR, expert OTDR, event map, OPM, RJ45 cable tracker, and "computer level" file management to meet various test requirements in different occasions.
Specification:
OTDR
Model
ST3200F-A
ST3200F-B
ST3200F-C
ST3200F-D
ST3200F-E
Type
G.652 SM
Wavelength
1310/1550±20nm
1625nm
1650nm
850/1300nm(MM)
DynamicRange
26dB/24dB
32/30dB
22dB
22/24dB
EventBlindZone
2.5m
ATT BlindZone
8m
Test Range
500m/1km/2km/4km/8km/16km/32km/64km/100km
Pulse Width
3ns/5ns/10ns/20ns/30ns/50ns/80ns/160ns/320ns/500ns/800ns/1us/2us/3us/5us/8us/10us/20us
Accuracy
± (1m+Sample interval+0.005% ×Test distance)
Linearity
≤0.05dB/dB
Sample Points
16k~128k
SamResolution
0.05m~8m
LossResolution
0.001dB
Loss Threshold
0.20dB
RangeResolution
0.001m
RefractiveIndex
1.00000-2.00000
Reflection Acc
±3dB
File Format
SOR Standard File Format
Loss Analysis
4-point method /5-point method
Laser Safety
Class II

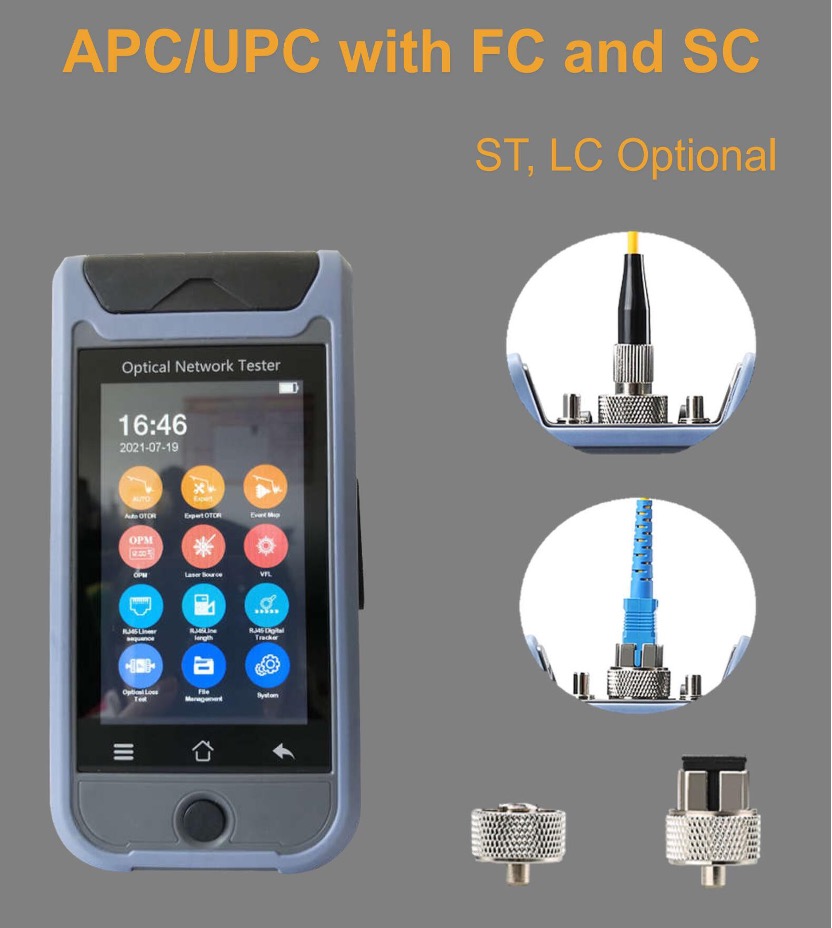

Connector
FC/UPC (Interchangeable SC、ST) Or SC/APC
Refresh Rate
3Hz (Typ.)
Multitasking
Support
OPM
LS
RJ45 Cable Length
Wave Range
800nm~1700nm
SamewithOTDR
Test Distance
≥300m
Test Range: -70~+10dBm/
-50~+26dBm
Laser Type
FP - LD
Others
Power
≥-5dBm
Display：4.3 inches 800×480 IPS TFT - LCD touch screen
Resolution
0.01dB
Stabilitycw,±0.5dB/15min
(After15min of preheating)
Uncertainty
±5%
FC/UPC (SC,ST available)
Power supply: AC/DC adapter
Input:100V~240V, 50/60Hz, 0.6A
Output: 5v 2A Lithium battery:3.7V,4000mAh
Frequency iden
CW/270/330/1k/2kH
CW/270Hz/330Hz/1kHz/2k
Universal FC/SC/ST
Wave Recog
Battery Working
Continuous test> 12h
Optical Loss Test
Data Storage
8GB, ≥20 thousand curves
VFL
Same with LS
Data Interface
USB Type C
650nm±20nm
IL Test
Work Temperature
-10°C~+50°C
Output Power
≥10mW

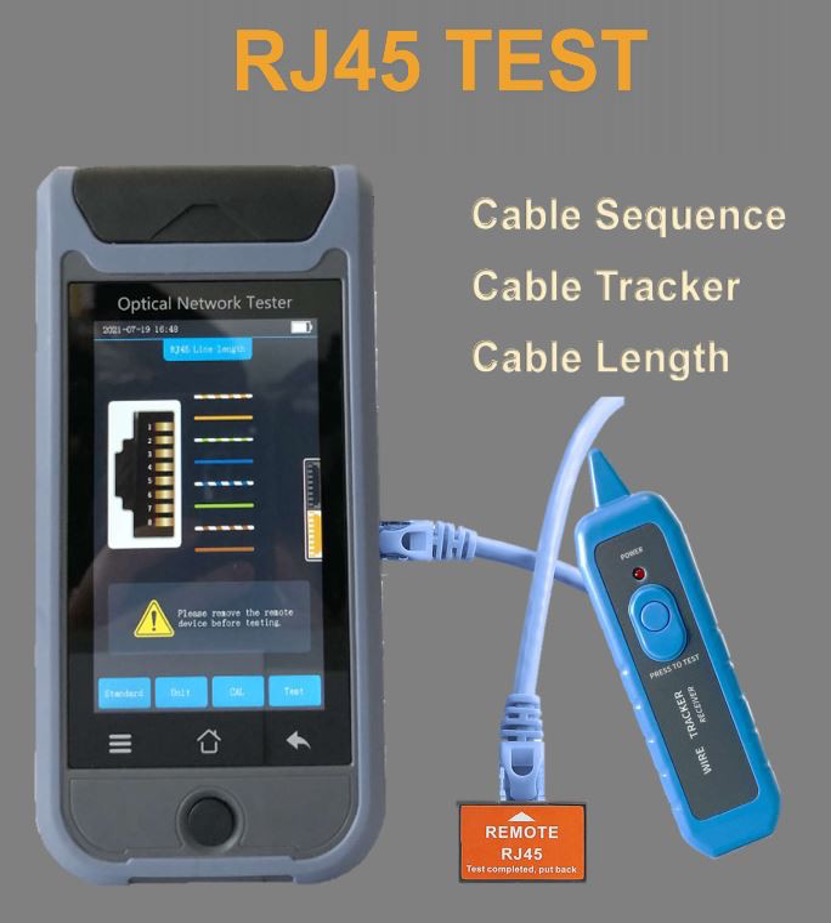

RJ45 cable tracker
Storage Temperature
-40°C~+70°C
Mode
CW/1Hz/2Hz
Digital tracking
Relative Humidity
0〜95% Non Condensing
Connector FC/UPC
Distance
Weight
≤0.5kg
Safety Level
Class III
Support Online/Line PairTracker
Size
173mm × 109mm × 45mm
